Description

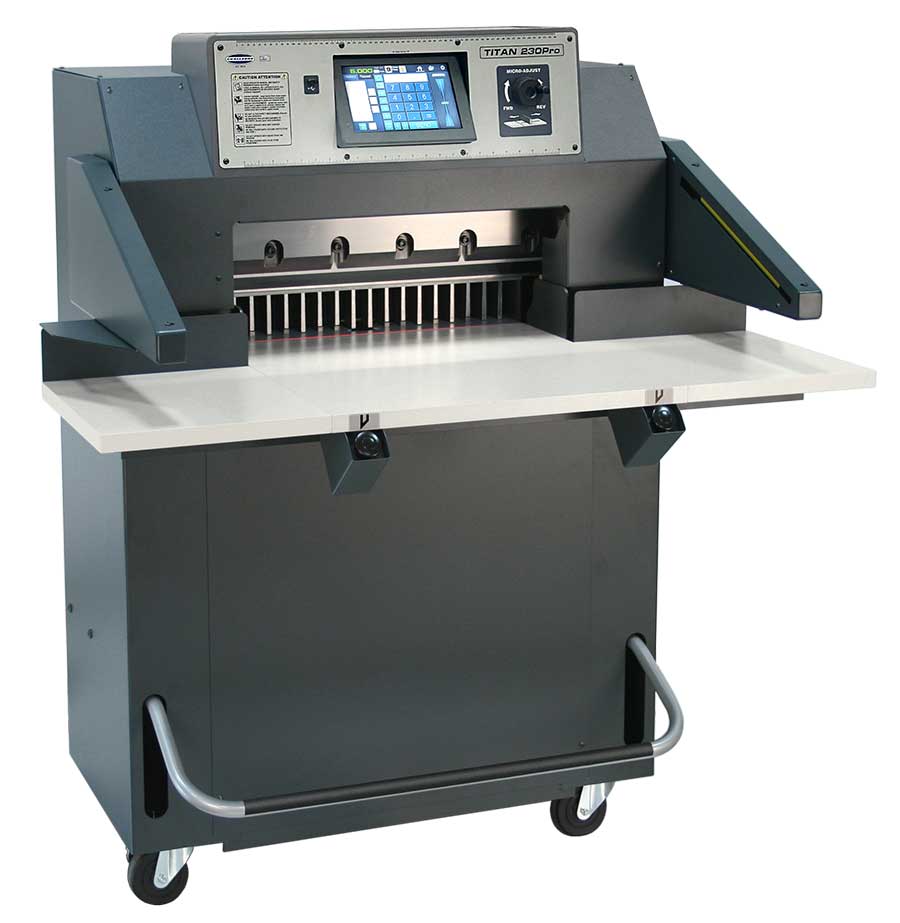

Titan 230 PRO
With today’s digital print market placing great demands on your business, some decisions can be difficult. Investments in cutting-edge wide format, inkjet, and digital print engines ensure you meet your customer’s diverse needs, but there are so many choices! When it comes to choosing your next paper cutter, this one is easy… step up to a Titan 230Pro!
The Titan 230Pro continues the Challenge excellence of innovation and strength we’ve become famous for since 1870. The Titan 230 is based on a solid cast iron and steel construction for maximum durability. UHMW gib surfaces, LED line lights, and a one-inch thick solid tool aluminum table require virtually no maintenance for years of trouble-free operation.
The intuitive “Pro” touch-screen controller allows easy job programming. The electronic clamp pressure control can be programmed for each step individually in a job. Machine self-diagnostics and error indication walks the operator through any potential difficulties.
The Titan 230Pro meets the toughest safety standards in the industry today. Category 4 safety eye beams, enclosed rear table, two-hand cut buttons, and knife safety latch contribute to our UL and CE certifications.
General
| Maximum Cutting Width | 23″ / 58.4cm |
| Minimum Cut w/o False Clamp Plate | 1/2″ / 13mm |
| Minimum Cut w/ False Clamp Plate | 1-7/8″ / 48cm |
| Maximum Cut Depth | 24″ / 61.0cm |
| Clamp Opening w/o False Clamp Plate | 3-1/4″ / 8.3cm |
| Clamp Opening w/ False Clamp Plate | 3″ / 7.6cm |
| Clamping Method | Hydraulic and Manual |
| Backgauge Control | Motor Powered (TC controlled) |
Dimensions
| Table Space (in front of knife) | 24-1/4″ / 61.6cm |
| Table Space (behind knife) | 24″ / 61.0cm |
| Total Height | 53″ 135cm |
| Total Width | 50″ / 127cm |
| Total Length | 66″ / 168cm |
| Pass through opening (w/o beams & switch) | 39″ / 99cm |
| Pass through opening (w/o table & treadle) | 29″ / 73.7cm |
| Net Weight (approximate) | 1000 lbs / 454 kg |
| Shipping Weight (approximate) | 1120 lbs / 508 kg |
Electrical
| Motor Type | Standard Motor |
| Hydraulic Pump | 1-3/4 H.P. One Phase, 60 Hz, AC |
| Power option 1 | 208/230 Volts, 12 Amps (service size 15 Amps) |
| Power note | Requires receptacle type: NEMA 6-15R or 6-20R |
