Description
2015 StitchLiner 5500

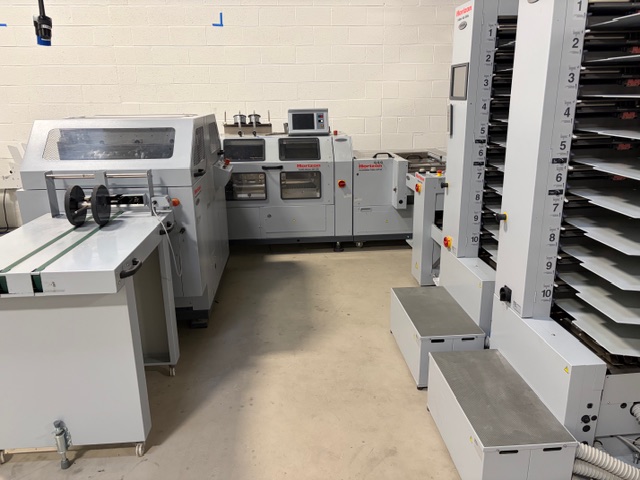

The StitchLiner 5500 combines efficiency and ease of operation of flat sheet collating with the productivity, versatility and quality of a Horizon saddle stitching system. At up to 5,500 booklets an hour it’s ideal for short, medium and long production runs. The icon-based touch screen and automation allow even less experienced operators to quickly and easily set up a new booklet job. Horizon’s 4-page signature concept scores and then folds, thus eliminating the time-consuming intermediate folding process required for 8- and 16-page formats. The SPF-30 quick change saddle stitcher delivers high quality stitching on booklets up to 10mm thick. The in-line three knife trimming provides complete, high-quality finishing on even the thickest booklets. The U-shaped layout is floor-space efficient and very convenient for the operator to monitor the system without running back and forth.
Works from flat-sheet 4-page sections
Key Features
- Colour touch-screen
- 100 JOB Memory storage -for fast recall & set-up!
- Simple, fast set-ups by non-specialist finishing operators
- Advanced all-system automation
- Make-ready in seconds, next-to-no-waste, on-demand working
- Works from flat-sheet 4-page sections
- No need to pre-fold

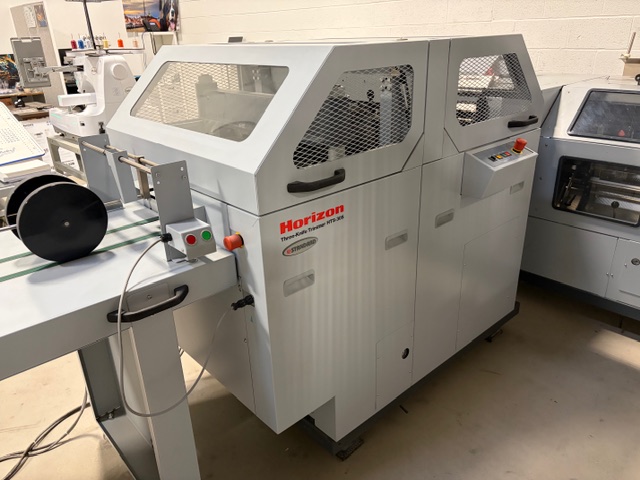

- Integrated automatic set-up 3-knife trimmer
- No need to pre-trim
- Score, plough fold, registration, and genuine saddle stitch
- High quality books with sharp spine definition
- High efficiency from runs-of-one
Specifications
| Sheet Size Maximum: | 13.77″ W x 19.68″ L (350 mm W x 500 mm L)) |
| Sheet Size Minimum: | 5.52″ W x 7.84 L (140 mm W x 199 mm L)) |
| Sheet Weight Range: | Normal: 64 to 210 gsm / Coated: 80 to 210 gsm |
| Booklet Size Maximum (before trim): | 13.77″ x 9.84″ (350 mm x 250 mm) |
| Booklet Size Minimum (before trim): | 5.52″ x 3.9″ (140 mm x 102 mm) |
| Trim Width: | 0.08″ to 1″ (2 mm x 25 mm) |
| Production Speed: | 5,500* booklets/hr maximum |
* Stated speed specifications WILL be reduced when using a HOF-400 feeder. Projected throughput specifications, based on customer applications, can be provided upon request.
