Description

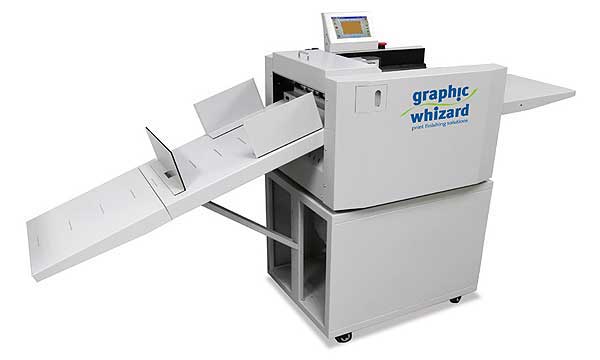

PT 335A Plus Multi
The PT 335A Plus Multi combines all the same features and versatility as the PT 335B Multi and more. Added strike perforation capabilities means the PT 335A Plus Multi can complete partial perforations in both directions in a single pass.
Equipped with interchangeable creasing/perfing die capability, the PT 335A Plus Multi can quickly switch over from perfing to creasing while preventing digital toner cracking. With the Progressive Crease function activated, each sheet is creased in a slightly different position, creating a “V” shape that forms a square back when the book is assembled, allowing it to lay flat after stapling. The Perfect Bind Cover mode is a user-friendly feature that calculates the crease positions for spine and hinge scoring based on operator input.
Key Features
- 8,040 sheets/set per hour
8.5” x 11” landscape, 1 crease - 110-130V, 50/60Hz, 15A
- Minimum 4.75” wide x 3.25” long (12.06cm x 8.25cm)
Maximum 13” wide x 35.4” long (33.02cm x 89.91cm)
Specifications
| Maximum Sheet Size | 13” wide x 35.4” long (33.02cm x 89.91cm) |
| Minimum Sheet Size | 4.75” wide x 3.25” long (12.06cm x 8.25cm) |
| Stock Weight | 100-400 gsm |
| Speed | 8,040 sheets per hour |
| Max Number of Creasing Positions | 32 |
| Cross Perforating | Yes |
| Linear Perforating | Yes |
| Strike Perforating | Yes |
| Micro Perforating | Yes 24/48 |
| Auto Sheet Measure | Yes |
| Program Memory | 64 |
| Feeder | 4” vacuum pile feed |
| Tabletop/Floor | Floor |
| Controls | Touch Screen |
| Machine Weight | 187lbs (85kg) |
| Machine Dimensions | 79.1” x 23.2” x 43.7” (201cm x 59cm x 111cm) |
| Electrical | 110-130V, 50/60Hz, 15A |
