Description

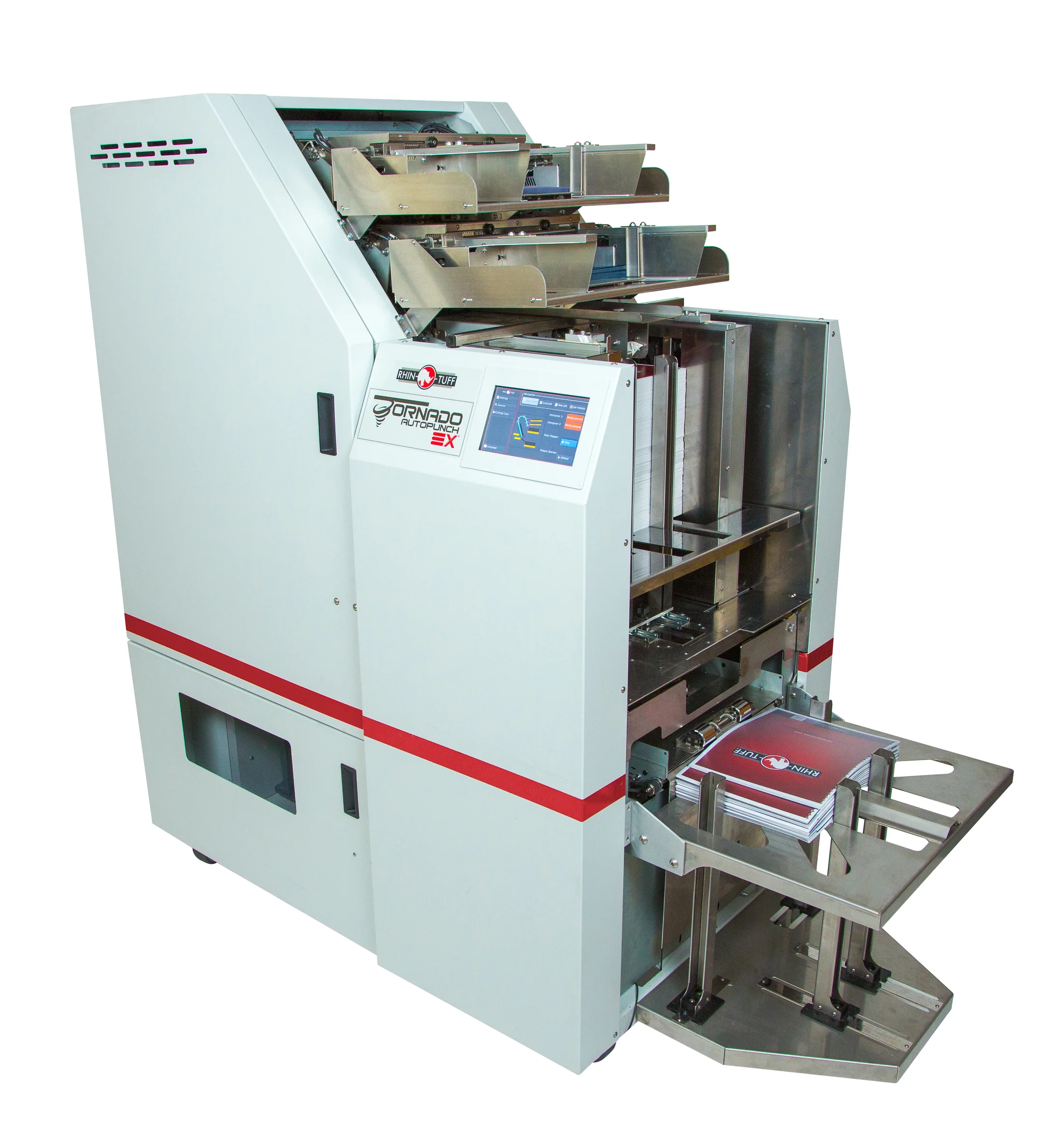

Tornado Autopunch EX
The Rhin-O-Tuff® Tornado Autopunch EX is an industry breakthrough system that uses BDT Print Media’s advanced media handling technology to automatically feed, collate, punch and deliver offset book stacks ready for binding in a single platform.
The system will save binding service providers an average of 40% in process efficiency, dramatically reducing overall costs. Handling the widest range of media in the industry, the system delivers unparalleled flexibility and enables concurrent binding operations. Perfect for on-demand, short runs the system includes easy programmable job set-up, monitoring and changeovers.
This punch streamlines print production processes, boasting the ability to produce over 100 books per hour across most document configurations. By leveraging automated punching and binding equipment, businesses can enhance productivity, reduce labor costs, and ultimately improve profitability in the new year and beyond.
This punch sets itself apart from other autopunches by offering a built-in collation feature. Unlike competing solutions, the Tornado Autopunch EX® streamlines more of the finishing process by automating both collating and punching steps.
Key Features:

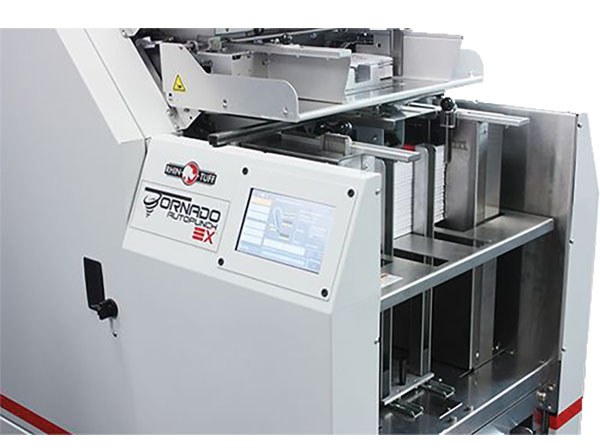

- 7 in Touchscreen Display
- Main Bin Capacity Up to 2500 Sheets of 20 lb.
- Two interposer binds that each hold up to 20 mm
- Interposer Bin Capacity up to 1 in of Covers, Index Tabs or Insert Sheets
- Offset Stacker
- Punching Speed Up to 10,800 Sheets per Hour
- 61 gsm – 312 gsm including uncoated bond, text / offset, coated, plastic, and vinyl covers
- Waste tray with a sensor to notify the operator when it requires emptying
Specifications
| Specification | Details |
|---|---|

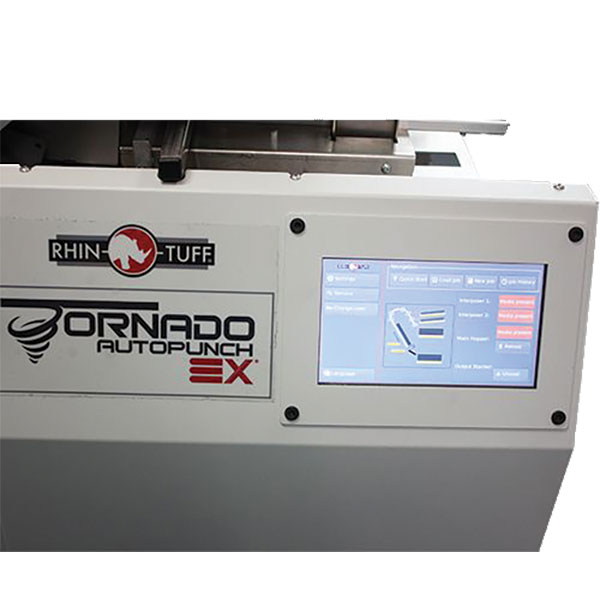

| Touchscreen Display | 7″ full-color interface |
| Sheet Sizes | Punched Edge: 8.27″ to 12″; Unpunched Edge: 5.5″ to 12.5″ |
| Index Tab Extension | Up to 0.5″ |
| Supported Media Weight | 60gsm to 312gsm |
| Main Bin Capacity | 2,500 sheets of 20 lb bond |
| Interposer Bin Capacity | 1″ stack of covers or index tabs |
| Punching Speed | Up to 10,800 sheets per hour |
| Offset Stacker Capacity | Up to 2,700 sheets of 20 lb bond |
| Dimensions | 29.5″ W x 50.3″ D x 57.7″ H |
| Weight | Approx. 700 lbs |
| Electrical Requirements | 115V, 60Hz |
| Certification | UL-CSA Approved |
| Warranty | 1-year limited warranty |
Available Options
- Die sets for coil, wire, comb, VeloBind, and more
- Barcode scanning integration for job automation
