Horizon Rotary Die Cutter | RD-3346

The Standard Horizon RD-3346 Rotary Die-Cut System meets the growing demand for short-run applications

Description

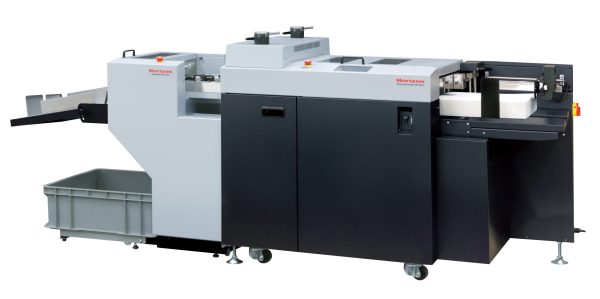

Horizon RD-3346 Rotary Die-Cut System

Designed to Meet Growing Demand for Short-Run Product

Compact and efficient rotary die-cut system that is designed for short-run product. Reduce die cost with the repeat register function!

Operation Console
The sheet size and die cutting position can be set through the intuitive touch screen. The graphical illustrations on the screen are simple and easy to understand. The error description will be displayed on the touch panel for quick error recovery.

Die Cutting SectionĀ
Servo motor driven gripper rollers ensure the die cut position and also enables repeat register function to minimize die cost and imposition flexibility. Maximum production speed is 5,000 cycles per hour and up to 0.35 mm / 0.013″ thickness substrate can be run through.

Feeding Registration
Vacuum belt feeding enables superior feeding with easy set up and operation. Sheets are firmly registered by the vacuum belt for accurate and consistent quality.

SeparatorĀ
The separator removes the waste from the finished product and delivers it into the waste bin. Only finished products are delivered on the delivery tray.

Delivery Section
Uniquely designed delivery catch tray neatly stacks finished product. Multiple up applications such as business cards can be stacked.
