Description

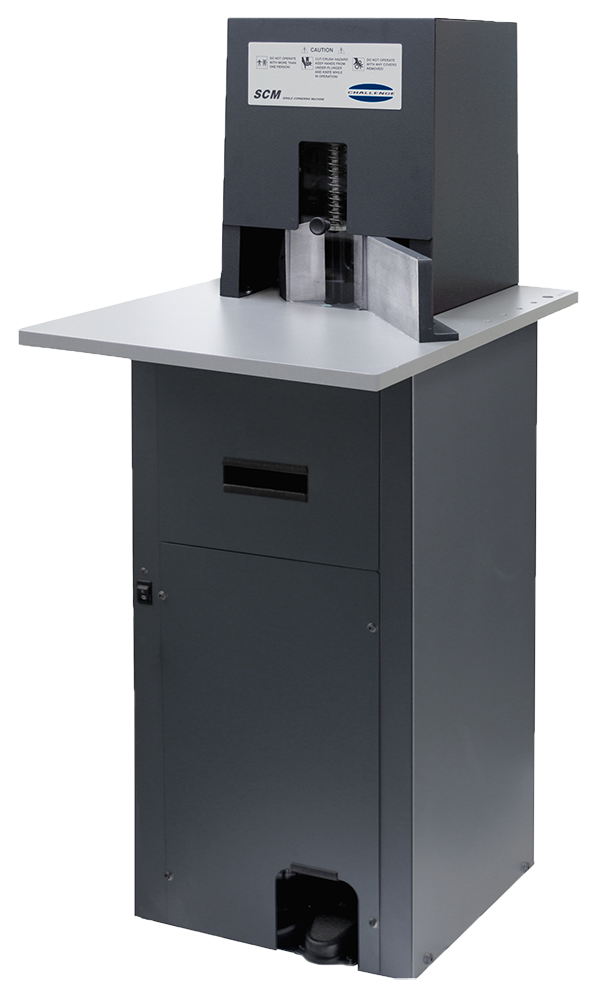

The Challenge Single Cornering Machine (SCM) is the perfect solution for production-level round cornering requirements. Available as either hydraulic or manual, the SCM features a table designed to handle any size stock, six sizes of precision, heavy-duty knife and die sets, integrated chip catch bin, and high pile capacity. Both models are designed to ensure years of trouble-free production.
Key Features
- 6 Sizes of Cornering Blades Available
- Handles Any Size Sheet
- 2″ Lift Capacity
- Precise Cutting Action
- Gravity Chip Disposal
General
| Maximum Lift Height | 2″ / 5 cm |
| Range of Lift Widths | Open |
| Corner Sizes Handled | 1/8″ to 5/8″ / 3 – 16 mm |
Dimensions
| Table Depth | 24″ / 6 cm |
| Table Width | 20-1/4″ / 51.5 cm |
| Table Height | 36″ / 91 cm |
| Overall Height | 52″ / 132 cm |
| Floor Space Needed | 24″ x 20-1/4″ / 61 x 51.5 cm |
| Net Weight (approximate) | 145 lbs / 66 kg |
| Shipping Weight (approximate) | 220 lbs / 100 kg |
