Description

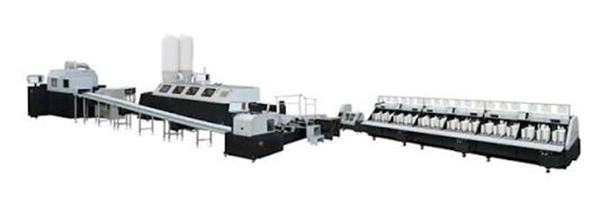

CABS 4000V
The commercial-duty Standard Horizon CABS 4000V is a 9-clamp binding system that employs a digital caliper, color touch screens, and advanced automation to achieve ultra-fast makeready and changeovers. The system can be expanded from 6 to 36 gathering stations, and the HT-101 in-line three-knife trimmer trims up to 3.9”. Quick set-up flexibility is now available in the range of 4,000 top-quality books per hour.
Key Features
- High productivity at 4,000 books per hour with in-line system from gathering to trimming.
- Color touch screens provide easy, intuitive operation for fast, accurate changeovers and quick adjustments for production flexibility.
- Equipped with interchangeable tank unit that allows binding with both EVA and PUR hotmelt.
- Various book sizes can be bound in-line, from minimum size A6 to maximum size A4.
- Off-line signature gathering is possible using the ST-600 stacker. Also, by installing the RU-600 misfeed unit the gatherer can operate non-stop.
- Quality control image checking cameras, thickness detector, weight checker and other optional quality control features.
- The system can be enhanced with automated workflow from upstream to post-press with iCE LiNK, which uses cloud technology, Horizon’s post-press management system.
Specifications
| Book Block Size | Spine Length x Fore-edge Length Inline:Portrait Max. 330 x 250 mm or 12.9” x 9.8” Min. 148 x 105 mm or 5.9” x 4.2” Offline:Portrait Max. 400 x 280 mm or 15.7” x 11.0” Min. 148 x 105 mm or 5.9” x 4.2” Offline:Land Scape Max. 330 x 320 mm or 12.9” x 12.5” Min. 135 x 185 mm or 5.4” x 7.3” |
| Book Thickness | 1 to 45 mmor 0.04” to 1.77” (depending on conditions) |
| Production Speed | Max. 4,000 books per hour |
