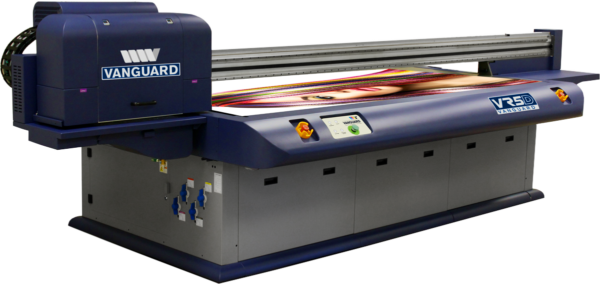

The Vanguard Digital Printing Systems VR5D-E flatbed LED UV printer combines revolutionary technology, industry leading quality and outstanding speed to out perform in the most demanding environments.
The VR5D-E utilizes dual-channel Ricoh Gen5 printheads allowing for greater versatility and scalability. With the ability to run two colors within the same printhead and 10 printhead slots in the jet-plate, our VR5D-E can be configured a multitude of different ways. The VR5D-E, with just two printheads in quality mode, is capable of printing up to 60 4’ x 8’ boards in a single shift. Need more speed? Add a second row of printheads, now or at any time in the future, and you can nearly double your output. Are you being met with the demand to print white? Vanguard has you covered! By simply adding white to your machine you’ll have the capability to meet those demands.
BandGUARD is the unique feature that allows the VR5D-E to rise above the competition. By installing 4 printheads per row, we mirror the printhead array which dramatically affects bi-directional print capability therefore maximizing quality and minimizing time. The BandGUARD configuration, YMCK-KCMY, lays down the ink in the same color order in each direction. This allows for higher quality prints with fewer passes.
