Description

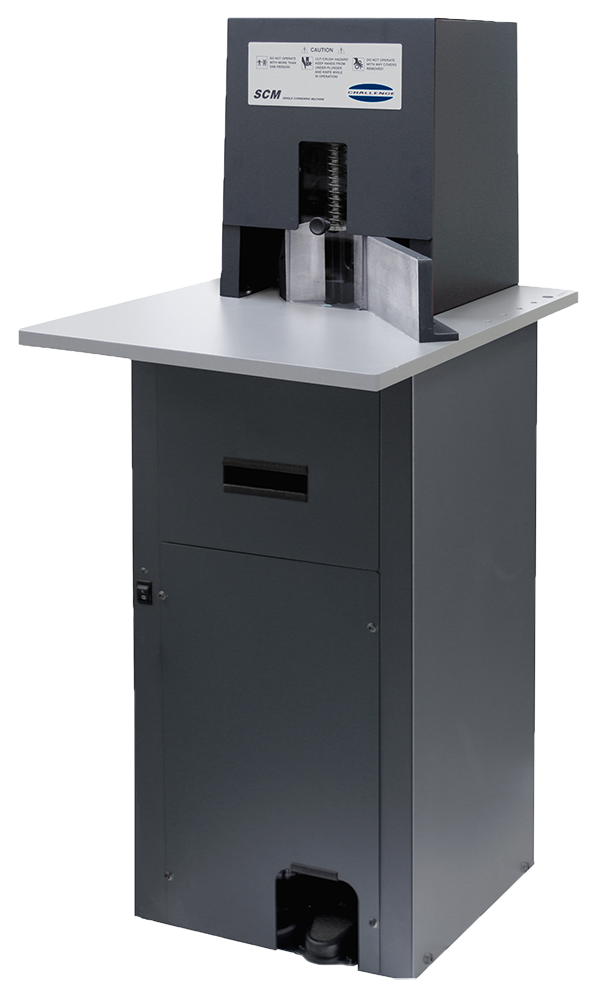

The Challenge Single Cornering Machine (SCM) is the perfect solution for production-level round cornering requirements. Available as either hydraulic or manual, the SCM features a table designed to handle any size stock, six sizes of precision, heavy-duty knife and die sets, integrated chip catch bin, and high pile capacity. Both models are designed to ensure years of trouble-free production.
Key Features
- Hydraulic powered with a 4″ (10 cm) lift capacity.
- 6 Sizes of Cornering Blades Available
- Handles Any Size Sheet
- Precise Cutting Action
- Gravity Chip Disposal
General
| Maximum Lift Height | 4″ / 10 cm |
| Range of Lift Widths | Open |
| Corner Sizes Handled | 1/8″ to 5/8″ / 3 – 16 mm |
Dimensions
| Table Depth | 24″ / 6 cm |
| Table Width | 20-1/4″ / 51.5 cm |
| Table Height | 36″ / 91 cm |
| Overall Height | 52″ / 132 cm |
| Floor Space Needed | 24″ x 20-1/4″ / 61 x 51.5 cm |
| Net Weight (approximate) | 190 lbs / 86 kg |
| Shipping Weight (approximate) | 265 lbs / 120 kg |
Electrical
| Motor Type | Hydaulic Motor |
| Power | 1 Phase, 60 Hz, AC. Pump: 1/2 H.P. 115Volts, 13.5 Amps (service size: 20 Amps) |
